Kaltprofilhalter mit Versteifungsstrebe



Quick Find: Clear Filters

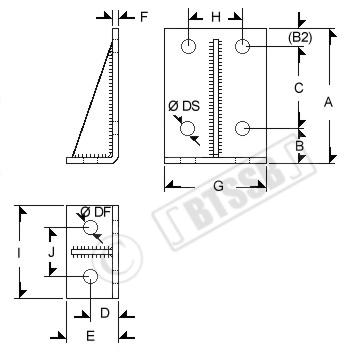

Bezeichnung Artikel
- Nr.		 Maß
A
[mm]		 Maß
B
[mm]		 Maß
C
[mm]		 Maß
(B2)
[mm]		 Maß
D
[mm]		 Maß
E
[mm]		 Maß
F
[mm]		 Maß
G
[mm]		 Maß
H
[mm]		 Maß
I
[mm]		 Maß
J
[mm]		 Ø
DS
[mm]		 Ø
DF
[mm]		 Passend zu Profil Artikel - Nr.
BOC140bV 1745 143 54 54 35 50 100 6 150 100 150 70 14 18 681
BOC180V 1746 155 55 81.5 18.5 40 75 6 130 70 130 70 18 18 346,771,772,347,348,773,774,
BOC121V 1747 120 38 56 26 35 65 6 130 70 130 70 18 18 622,398,623,624,265,651,652,653,654,
BOC105V 1748 103 60 0 43 35 65 8 130 70 130 70 18 18 44,725,45,
BOCC105dV 1749 114 47 42 25 48 75 6 150 100 150 70 14 18 1605,1606,
BOCC140dV 1750 121 54 42 25 48 75 8 150 100 150 70 14 18 1607,1608,1609,1610,
BOCC105V 1751 105 40 45 20 35 65 8 120 70 120 70 18 18 1603,1604,854,855,856,857,
BOCC90dV 1752 92 27.5 45 19.5 48 75 6 150 100 150 70 14 18 1603,1604,
BOCC100cV 1753 105 35 50 20 40 75 6 130 70 130 70 14 14 757,758,759,760,761,762,
BOCC120V 1754 120 45 50 25 35 65 8 120 70 120 70 18 18 858,859,860,861,
BOC142V 1755 130 50 56 24 35 65 6 130 70 130 70 18 18 622,398,623,624,265,625,395,396,397,1571,1572,229,228,33,34,
651,652,653,654,655,399,400,401,1578,1579,1580,48,49,50,
BOC-120V 1756 120 35 60 25 40 75 6 130 70 130 70 18 18 796,797,
BOC140V 1757 138 48 60 30 35 65 10 130 70 130 70 18 18 862,46,863,227,864,47,1569,865,763,764,765,766,767,726,51
BOC150V 1758 148 53 60 35 35 65 10 130 70 130 70 18 18 862,46,863,227,864,47,1569,865,763,764,765,766,767,726,51,
BOCC160d1V 1759 138 52 61 25 48 75 8 150 100 150 70 14 18 1611,1612,1613,1614,
BOC151V 1760 140 50 66 24 35 65 6 130 70 130 70 18 18 626,627,628,629,656,657,658,659,
BOCZS140V 1761 130 40 70 20 40 75 6 130 70 130 70 18 18 354,882,798,355,883,799,356,884,885,
BOCZ140V 1762 135 44 70 21 35 65 6 100 70 100 50 18 18 354,882,798,355,883,799,356,884,885,866,867,868,869,
BOC160V 1763 140 50 70 20 40 75 6 130 70 130 70 18 18 357,358,359,866,867,868,869,
BOC180dV 1764 180 81 74 25 48 75 6 152 100 152 70 18 18
BOCS120bV 1765 123 26 80 17 50 100 6 150 100 150 70 14 18 700
BOCC160d2V 1766 155 50 80 25 48 75 8 150 100 150 70 14 18 682,683,684,870,871,872,873,
BOC170bV 1767 173 56 80 37 50 100 6 150 100 150 70 14 18 682,683,684,870,871,872,873,874,1615,875,876,1616,877,
BOC180bV 1768 183 56 80 47 50 100 6 150 100 150 70 14 18 683,684,874,1615,875,876,1616,877,
BOCC180d1V 1769 163 58 80 25 48 75 10 150 100 150 70 14 18 682,683,684,870,871,872,873,874,1615,875,876,1616,877,
BOCC180d2V 1770 170 65 80 25 48 75 10 150 100 150 70 14 18 682,683,684,870,871,872,873,874,1615,875,876,1616,877,878,1617,879,880,1618,881,
BOC180cV 1771 176 60 81.5 34.5 40 75 6 130 70 130 70 14 14 771,772,773,771,
BOC172V 1772 160 50 86 24 35 65 6 130 70 130 70 18 18 630,631,632,633,634,1573,319,3,4,5,6,7,8,660,661,662,663,664,1581,1582,52,53,54,66,67,55,
BOC5113V 5113 160 50 86 24 55 100 6 260 200 260 200 18 18
BOCZ160V 1773 155 44 90 21 35 65 6 100 70 100 50 18 18 886,887,888,889,
BOCZ180V 1774 175 54 90 31 35 65 8 120 70 120 70 18 18 886,887,888,889,890,800,891,801,892,893,
BOC-210V 1775 180 65 90 25 40 75 8 130 70 130 70 18 18 802,803,804,
BOC200dV 1776 200 81 94 25 48 75 8 152 100 152 70 18 18
BOCS140bV 1777 143 26 100 17 50 100 6 150 100 150 70 14 18 838,839,368,701,367,369,
BOCS140V 1778 148 30 100 18 40 75 6 160 100 160 70 14 18 838,839,368,701,367,369,
BOC200V 1779 175 55 100 20 40 75 6 130 70 130 70 18 18 349,350,351,775,776,777,778,779,768,769,770,
BOC200cV 1780 186 60 100 26 40 75 6 130 70 130 70 14 14 349,350,351,775,776,777,778,779,768,769,770,
BOC5157V 5157 212 77 100 35 130 32 8 170 100 170 116 18 18
BOCS140cV 1781 149 29 102 18 40 75 6 160 100 160 70 14 14 728,729,730,
BOCS-145V 1782 153 30 105 18 40 75 6 160 100 160 70 14 18 813,814,
BOC200bV 1783 203 57 108 38 50 100 8 150 100 150 70 14 18 685,686,687,
BOCZ200V 1784 195 54 110 31 35 65 8 120 70 120 70 18 18 894,895,896,897,
BOC220dV 1785 220 81 114 25 48 75 8 152 100 152 70 18 18
BOC201V 1786 190 50 116 24 35 65 8 130 70 130 70 18 18 635,636,637,638,639,640,1574,1575,9,10,11,12,13,14,415,15,665,666,667,668,669,670,1583,1584,56,57,58,59,60,727,61,
BOC202V 1787 190 50 116 24 35 65 6 130 70 130 70 18 18 635,636,637,638,639,640,1574,1575,9,10,11,12,13,14,415,15,665,666,667,668,669,670,1583,1584,56,57,58,59,60,727,61,
BOC3629 3629 430 290 116 24 35 65 6 150 70 150 90 18 18
BOC3630 3630 430 290 116 24 35 65 6 130 70 130 90 18 18
BOC220V 1788 195 55 120 20 40 75 6 130 70 130 70 18 18 352,353,
BOC220bV 1789 223 67 128 28 50 100 8 150 100 150 70 14 18 688
BOCS170bV 1790 173 26 130 17 50 100 6 150 100 150 70 14 18 370,702,371,372,
BOCS170V 1791 178 30 130 18 40 75 6 160 100 160 70 14 18 370,702,371,372,
BOCZ220V 1792 215 54 130 31 35 65 8 120 70 120 70 18 18 902,903,904,905,898,899,900,901,
BOCZ240V 1793 235 64 130 41 35 65 8 120 70 120 70 18 18 902,903,904,905,898,899,900,901,
BOCS170cV 1794 179 29 132 18 40 75 6 160 100 160 70 14 14 731,732,733,
BOC240dV 1795 240 81 134 25 48 75 8 152 100 152 70 18 18
BOCS-175V 1796 183 30 135 18 40 75 6 160 100 160 70 14 18 815,816,
BOCC-180V 1797 185 30 140 15 35 65 8 120 70 120 70 18 18 840,841,
BOC231V 1798 220 50 146 24 35 60 8 130 70 130 70 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC232V 1799 220 50 146 24 35 65 6 130 70 130 70 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
boc232vj90 3335 220 50 146 24 35 65 6 150 70 150 90 18 18 641,642,643,644,645,316,16,17,18,19,20,671,672,673,674,675,1585,1586,62,63,64,65,
BOC240bV 1800 243 67 148 28 50 100 8 150 100 150 70 18 18 689
BOC250V 1801 245 60 150 35 40 75 10 130 70 130 70 18 18 829,830,831,780,383,781,384,385,782,783,784,906,907,908,909,
BOC250cV 1802 245 60 150 35 40 75 8 130 70 130 70 18 18 829,830,831,780,383,781,384,385,782,783,784,906,907,908,909,
BOCZ260V 1803 255 64 150 41 45 75 10 150 70 150 100 18 18 829,830,831,780,383,781,384,385,782,783,784,906,907,908,909,
BOCZ240dV 1804 229 47 157 25 48 75 8 152 100 152 70 18 18 1598,1599,1600,
BOCS200bV 1805 203 26 160 17 50 100 8 150 100 150 70 14 18 373,703,374,375,
BOCS200V 1806 208 30 160 18 40 75 8 160 100 160 70 14 18 373,703,374,375,
BOC4722 4722 280 79 160 41 40 75 8 160 70 160 96 18 18
BOCS200cV 1807 209 29 162 18 40 75 8 160 100 160 70 14 14 734,735,736,737,
BOCS-205V 1808 213 30 165 18 40 75 8 160 100 160 70 14 18 817,818,819,
BOC260bV 1809 263 57 168 38 50 100 8 150 100 150 70 18 18 690,691,692,693,694,
BOCC-210V 1810 215 30 170 15 35 65 10 120 70 120 70 18 18 842,843,844,
BOCZ280V 1811 275 64 170 41 45 75 12 150 70 150 100 18 18 832,833,834,910,911,912,913,
BOC4925 4925 280 66 170 44 50+80 170 8 160 80 160 0 18x25 20
BOC4950 4950 280 80 175 25 40 75 8 130 70 130 70 18 18
BOC261V 1812 250 50 176 24 35 60 10 130 70 130 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331,
BOC262V 1813 250 50 176 24 35 65 6 130 70 130 70 18 18 646,647,648,649,650,1576,21,22,294,24,25,676,677,678,679,680,1587,1588,327,330,1589,331,
BOC300bV 1814 303 72 178 53 50 100 8 150 100 150 70 18 18 695,696,697,698,699,
BOC-300V 1815 270 65 180 25 40 75 10 130 70 130 70 18 18 835,836,837,
BOCS230bV 1816 233 26 190 17 50 100 8 150 100 150 70 14 18 376,704,705,377,378,
BOCS230V 1817 238 30 190 18 40 75 8 160 100 160 70 14 18 376,704,705,377,378,
BOC300V 1818 285 60 190 35 40 75 10 130 70 130 70 18 18 386,785,914,387,786,915,388,916,917,787,788,
BOCZ300V 1819 295 64 190 41 45 75 12 150 70 150 100 18 18 386,785,914,387,786,915,388,916,917,787,788,
BOCS-235V 1820 243 30 195 18 40 75 10 160 100 160 70 14 18 820,821,822,
BOC302V 1821 280 60 195 25 40 75 8 130 70 130 70 18 18 320,26,27,28,1590,1591,1592,1593,
boc302vj90 3408 280 60 195 25 40 75 8 150 90 150 90 18 18 302
BOC3917 3917 280 60 195 25 40 70 8 130 70 130 70 18 18 320,26,27,28,1590,1591,1592,1593,
BOC4518 4518 320 100 195 25 40 75 8 160 70 160 100 18 18
BOC4617 4617 280 60 195 25 40 75 8 110 60 110 60 18 18 320,26,27,28,1590,1591,1592,1593,
BOC4926 4926 288 60 195 33 49+80 178 8 130 70 130 66 18 18
BOC5143V 5143 365 141 195 29 50 100 10 140 70 140 80 18 18
BOC5144V 5144 365 141 195 29 80 120 10 140 70 140 80 18 18
BOC5145V 5145 365 141 195 29 40 100 10 220 70 220 160 18 18
BOC5146V 5146 365 141 195 29 70 120 10 220 70 220 160 18 18
BOC5224V 5224 280 60 195 25 40 75 8 160 70 160 100 18 18
BOCS250cV 1822 262 40 196 26 40 75 8 160 100 160 70 18 18 738,739,740,741,
BOCZ300dV 1823 279 57 197 25 48 75 12 152 100 152 70 18 18 1601,1602,
BOCC-240V 1824 245 30 200 15 35 65 12 120 70 120 70 18 18 845,846,847,
BOCS260bV 1825 263 26 220 17 50 100 8 150 100 150 70 14 18 706,707,708,709,710,
BOCS-265V 1826 273 30 225 18 40 75 12 160 100 160 70 14 18 823,824,825,
BOCC-270V 1827 275 30 230 15 35 65 12 120 70 120 70 18 18 848,849,850,
BOC342V 1828 320 60 235 25 40 75 8 130 70 130 70 18 18 1577,29,30,31,1594,1595,1596,1597,
boc342vg180 3370 320 60 235 25 40 75 8 180 70 180 70 18 18 1577,29,30,31,1594,1595,1596,1597,
boc342vg250 5111 320 60 235 25 40 75 8 250 70 250 190 18 18 1577,29,30,31,1594,1595,1596,1597,
boc342vj90 3688 320 60 235 25 40 75 8 130 70 130 90 18 18 1577,29,30,31,1594,1595,1596,1597
boc342vj90f6 3691 320 60 235 25 40 75 6 130 70 130 90 18 18 1577,29,30,31,1594,1595,1596,1597
boc342vf6 3692 320 60 235 25 40 75 6 130 70 130 70 18 18 1577,29,30,31,1594,1595,1596,1597
BOC4286 4286 320 60 235 25 40 75 8 130 70 130 70 17 18 1577,29,30,31,1594,1595,1596,1597
BOC4519 4519 320 60 235 25 40 75 8 160 70 160 100 18 18
BOC4939 4939 320 60 235 25 40 75 8 150 70 150 90 18 18
BOC5112V 5112 320 60 235 25 40 150 8 156 70 156 0 18 18 1577,29,30,31,1594,1595,1596,1597
BOC350cV 1829 335 65 240 30 40 75 12 130 70 130 70 18 18 789,790,791,792,
BOCS300cV 1830 312 40 246 26 40 75 10 160 100 160 70 18 18 742,743,744,745,746,
BOCS300bV 1831 303 26 260 17 50 100 8 150 100 150 70 14 18 851,852,853,711,826,712,827,713,828,714,
BOCS320bV 1832 327 38 262 27 50 100 8 150 100 150 70 18 18 715,716,717,718,719,
BOC400cV 1833 385 65 290 30 40 75 14 130 70 130 70 18 18 793,794,795,
BOCS350bV 1834 357 38 292 27 50 100 8 150 100 150 70 18 18 720,721,722,723,724,
BOCS350cV 1835 362 40 296 26 40 75 12 160 100 160 70 18 18 747,748,749,750,751,
BOCS420cV 1836 431 63 320 48 40 75 14 160 100 160 70 18 18 752,753,754,755,756,
